Brief introduction of step tile roll forming machine  :
Metal step roof tiles produced by Step Tile Roll Forming Machine from high quality prepainted sheets most time apply as roofing on container house , light steel villas or prefabricated buildings.
Technical Parameters of step tile roll forming machine
|
Suitable material |
PPGI coils & Aluminium coils ;0.4-0.5mm |
|
Working speed |
About 6m/min |
|
Step distance |
Adjustable according to requirement (>=250mm) |
|
Power Requirement |
Main motor power: 5.5 Kw(Depend on final design) |
|
Hydraulic station power: 5.5Kw(Depend on final design) |
|
|
Material of forming rollers |
No.45 steel, plated with chrome on surface. |
|
Material of cutter,pressing die |
Cr12 mould steel with quench treatment, HRC58-60 |
|
Material of shaft |
High quality 45# steel, Dia. is 72mm. Roller grinder milling. |
|
Shaft diameter |
72mm |
|
Controlling system |
Mitsubishi PLC & converter |
|
Total weight of machine |
About 10500KGS |
|
Machine’s size |
About 18m×1.8m× 1.5m (Depend on final design) |

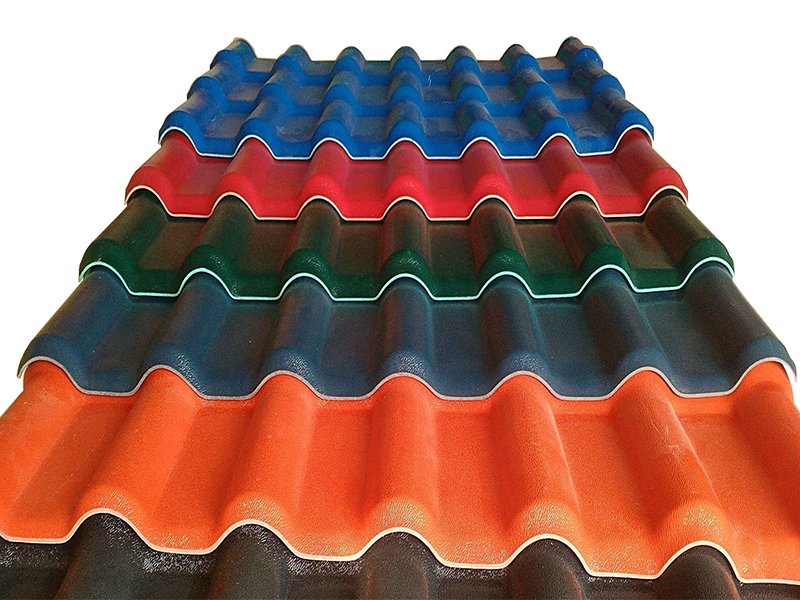

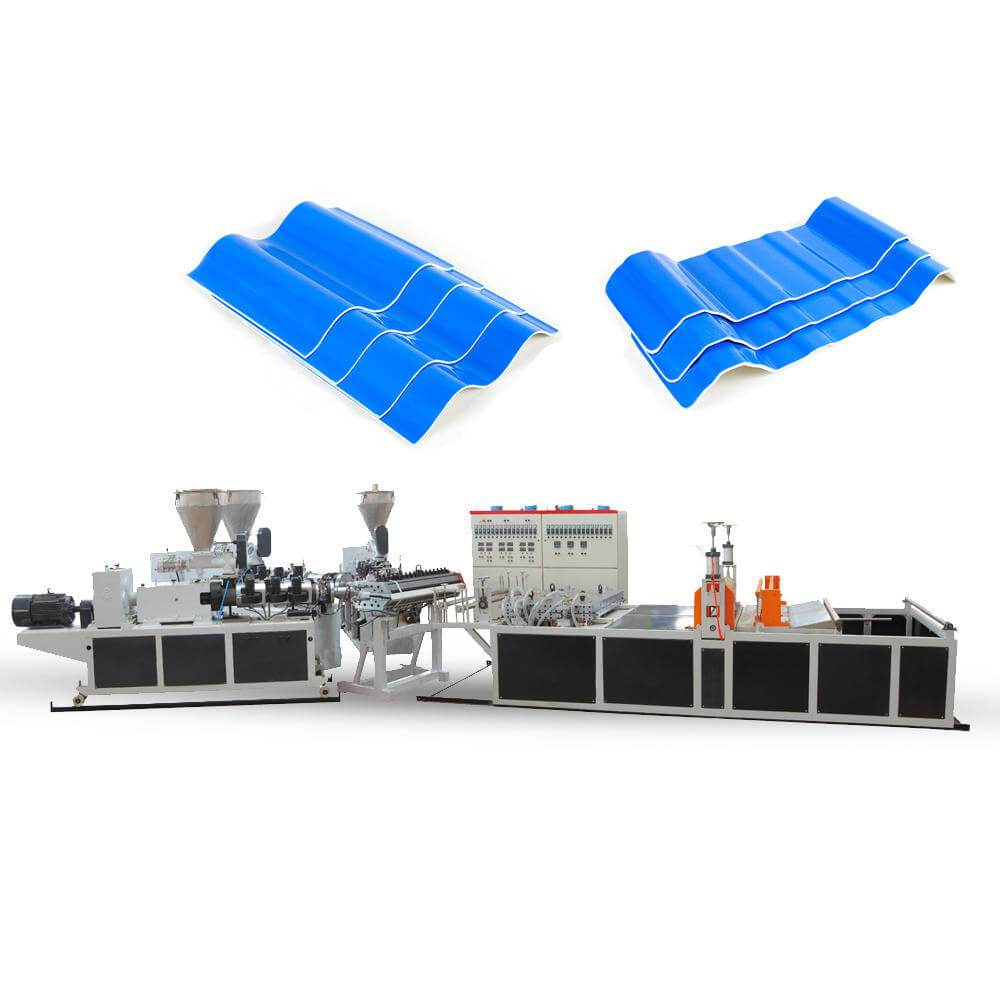

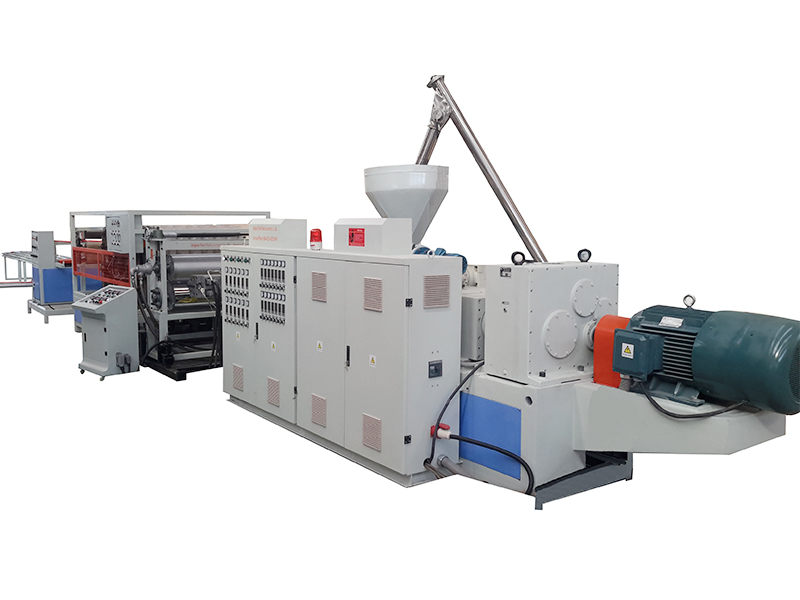

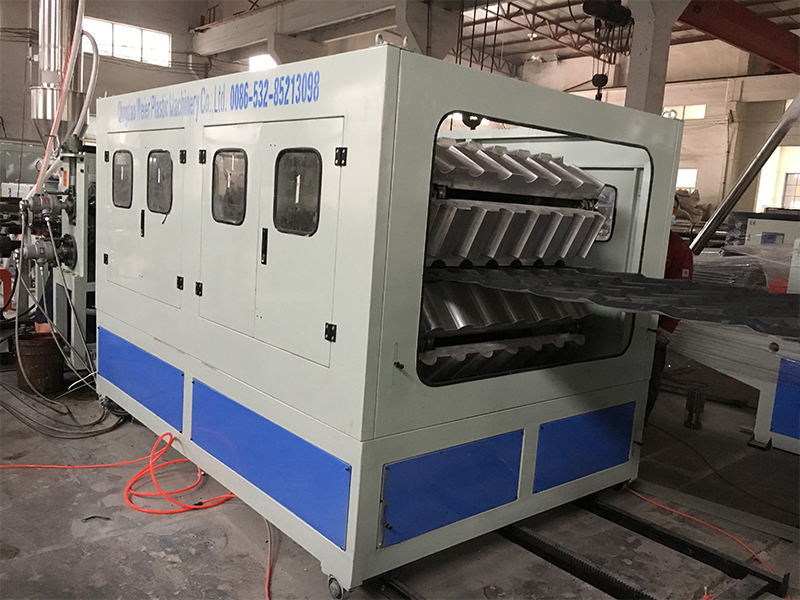

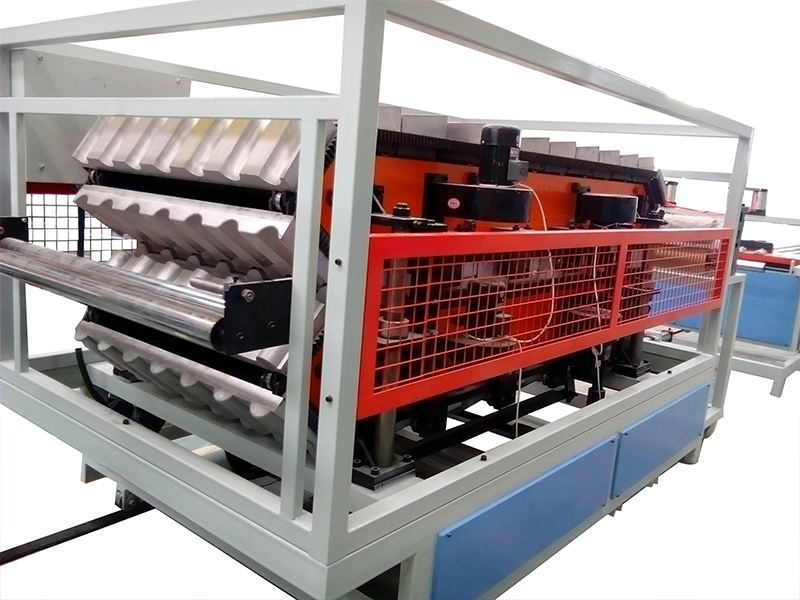

PVC Glazed Roof/Spanish Roof Sheet Extrusion Line
