Description

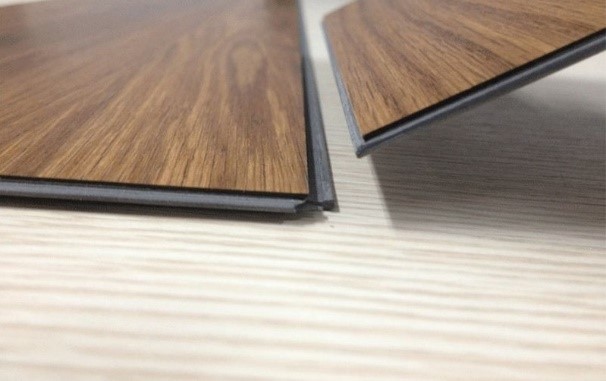

How To Making The SPC Floor ?
1. Production Process Flow:
Step1. Mix
According to the ratio of raw materials for automatic weighing, high-speed mixer hot mix (thermal mixing temperature: 125 ℃, role.
It is the mixing of all kinds of materials evenly, removing water from the materials.
To prevent over-heating and burning, cold mix temperature: 55 ℃. Evenly mixed materials by cooling.
Step 2: Extrusion
Add the double screw extruder, and conduct the heating extrusion

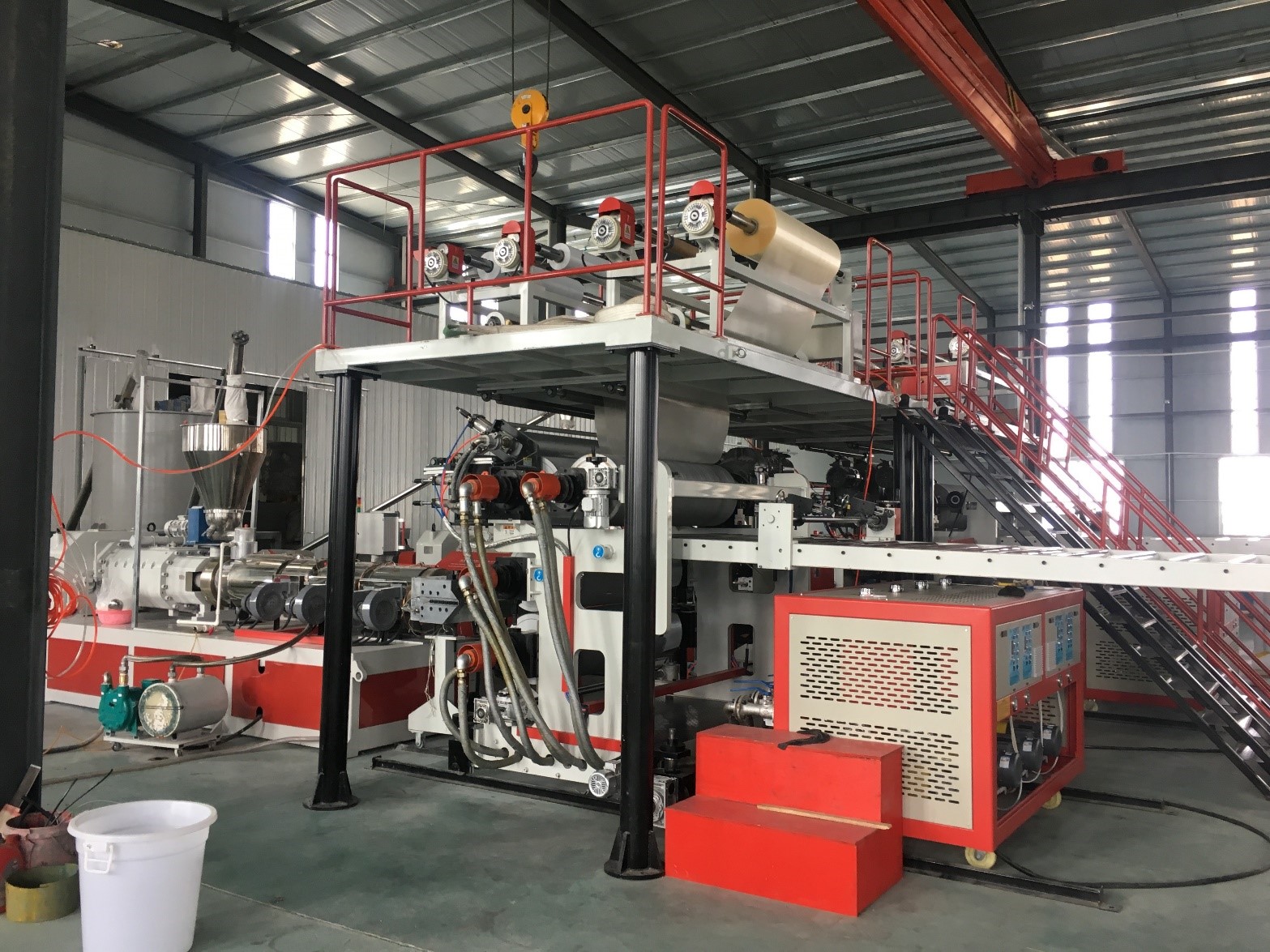

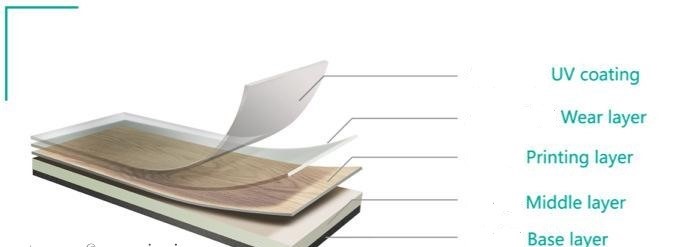

After four roller calender, the base material is fixed thickness, color film, wear-resistant layer, cooling and cutting.
Step 3: UV coating
Surface UV coating machine
Procedure 4: cutting +slotting + packaging
Slitting – grooving, trimming, chamfering – inspection – packaging
2. List Of Equipment
| No. | Machinery List | QTY | Remark |

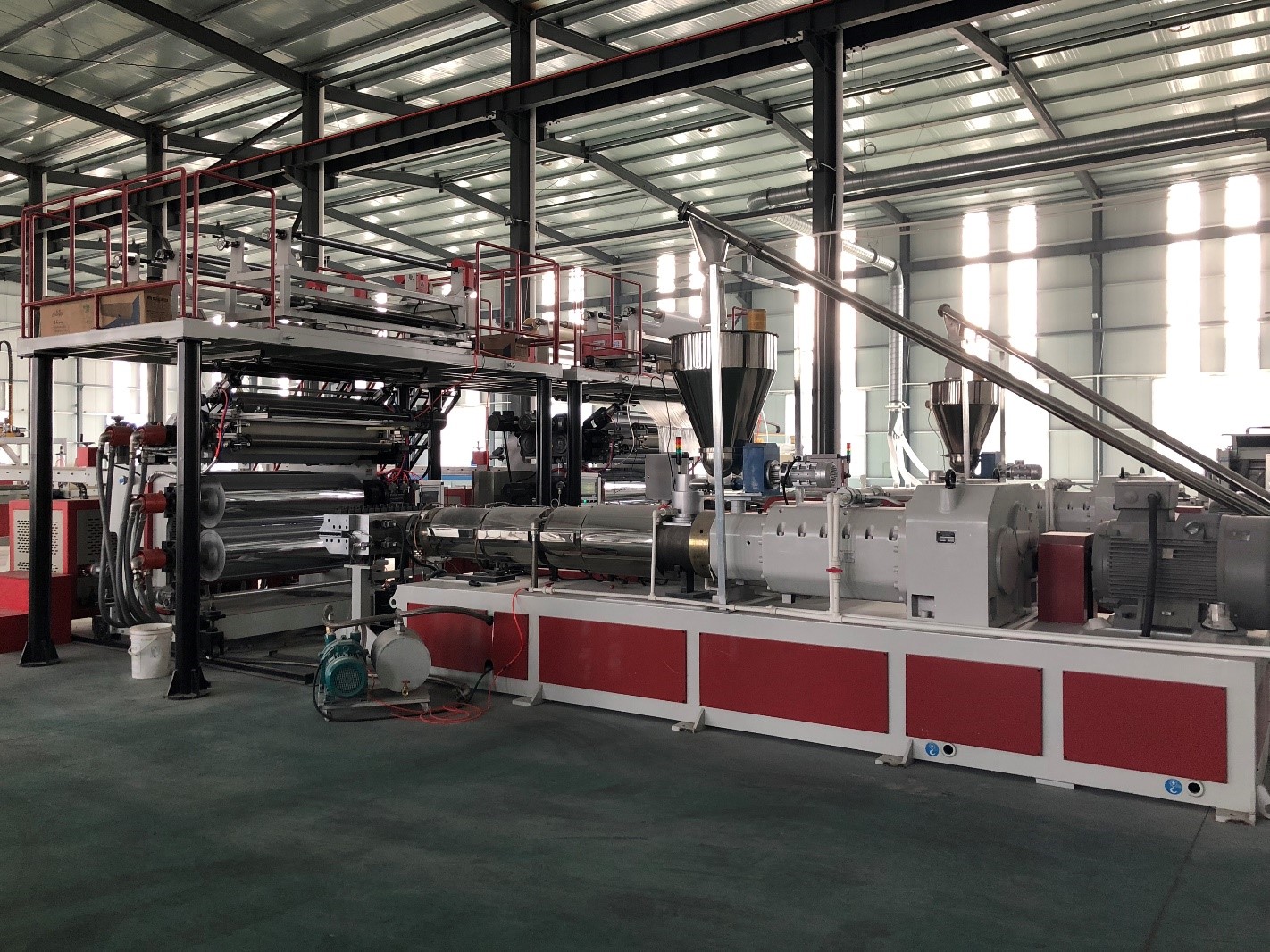

| 1 | 92/188 Conical Twin Screw Extruder | 1 | 800kg/Hr |
| 2 | Extrusion Mould | 1 | |
| 3 | 4 Roller Calendar | 1 | |
| 4 | Water Roller Thermostat Controller | 1 | |
| 5 | Double Working Position Pay-Off
System |
1 | |

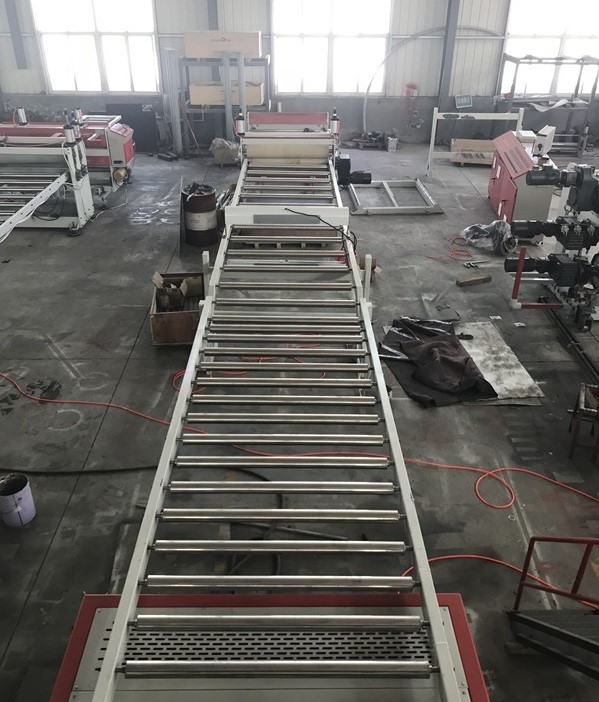

| 6 | Cooling Bracket | 1 | 12 Meters |
| 7 | Edge Trimming Unit | 4 | |
| 8 | Haul-Off | 1 | |
| 9 | Cutter | 1 | |

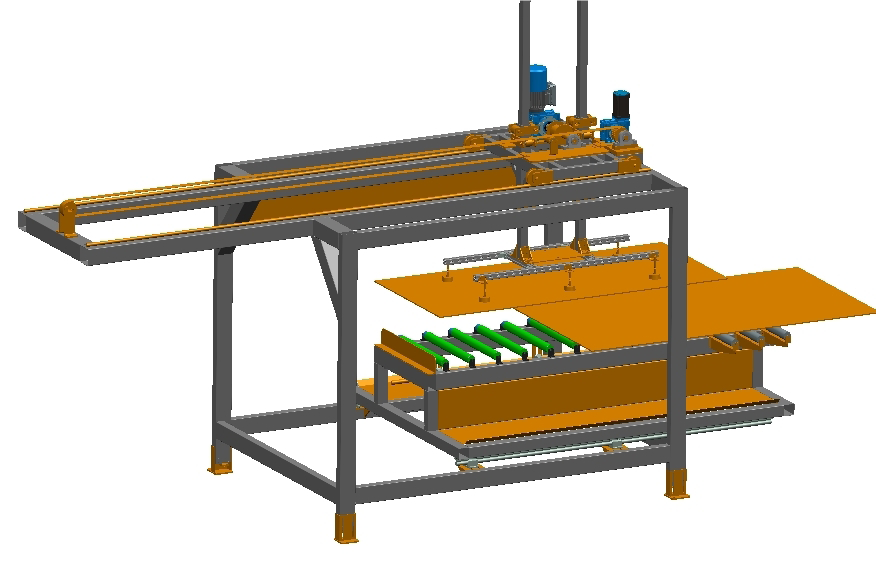

| 10 | Stacker | 1 |
| Auxiliary Machinery List | |||
| 1 | Feeding Machine | 2 | |
| 2 | Hot-Cool Mixer | 1 | 800/2000 |
| 3 | Crusher | 1 | 37kw |
| 4 | Milling Machine | 1 | 90kw |
| 5 | Cutting And Slotting Machine | 1 | Auto Or Semi-Automatic |

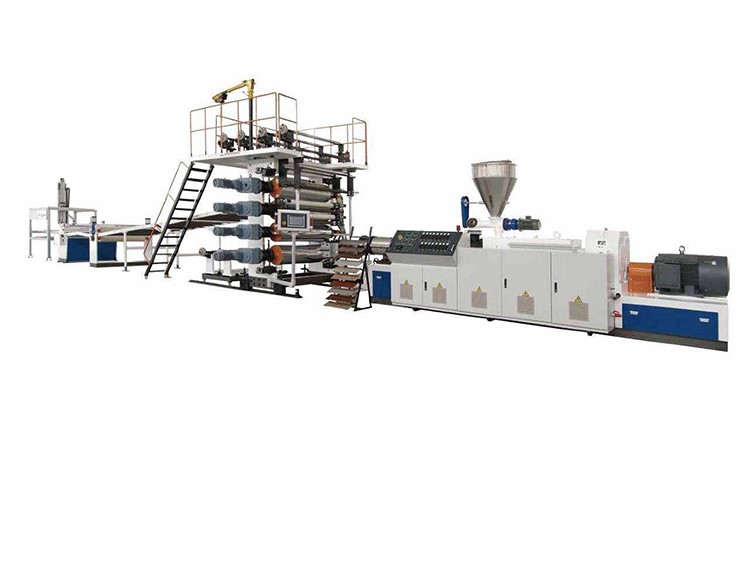

3. Feature Of SPC Floor Extrusion Line
1) High cost performance, strong stability.
2) High automation, Labor less.
3) One key service, including: provide workshop layout, equipment processing, equipment installation and debugging, staff training and a complete set of solutions.
4) The SPC floor manufacturing process is more simple than LVT, WPC flooring.
