WPC Furniture Board Extrusion Machine


WPC Extrusion Machine

WPC Extrusion Machine is Wood Plastic Composite Production line, It use new or recycled PP PE PVC to produce Profile, Board etc products.

Plastic Formulation Final Product
PVC 10%-30% wood powder or natural fiber, 70%-90% PVC Door Frame, Door Board, Furniture Board, Decoration Board, Wall Panel etc
PP/PE 50%-70% Wood powder or natural fiber, 30%-50% PP/PE Railing, Fencing, Decking, Flooring, Pillar, etc

Machine Model

WPC foam board extrusion line Product size Capacity
SJMS80/156 Width: 1220mm,  Thickness:3-18mm 250-350kg/h
SJMS80/173 Width: 1220mm Thickness: 5-30mm 300-400kg/h
SJMS80/173 Width: 1220mm Thickness: 5-35mm 300-400kg/h

11,000,000.00 12,500,000.00

Compare

WPC Extrusion Machine

WPC Extrusion Machine is Wood Plastic Composite Production line, It use new or recycled PP PE PVC to produce Profile, Board etc products.

Plastic Formulation Final Product
PVC 10%-30% wood powder or natural fiber, 70%-90% PVC Door Frame, Door Board, Furniture Board, Decoration Board, Wall Panel etc
PP/PE 50%-70% Wood powder or natural fiber, 30%-50% PP/PE Railing, Fencing, Decking, Flooring, Pillar, etc

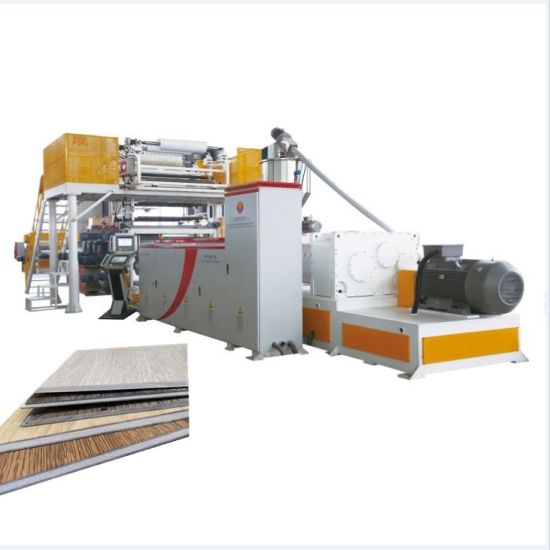

WPC Furniture Board Extrusion Machine

WPC Furniture Board Extrusion Machine use PVC and wood fiber as raw material, by semi-crust or full-crust foaming technology, to make WPC solid boards/panels with low density for 0.45-0.8gram/cm3.

Machine Model

WPC foam board extrusion line Product size Capacity
SJMS80/156 Width: 1220mm,  Thickness:3-18mm 250-350kg/h
SJMS80/173 Width: 1220mm Thickness: 5-30mm 300-400kg/h
SJMS80/173 Width: 1220mm Thickness: 5-35mm 300-400kg/h

Formulation of WPC Furniture Board

The raw material is PVC, Wood Powder,CaCo3 and chemicals, the ratio as bellow:

Item Material name Mixing Ratio
01 PVC resin 100 kgs
02 wood powder 10-20 kgs
03 CaCo3 40-70 kgs
04 Chemical additives around 15 kgs

Production Process of WPC Furniture Board Extrusion Machine

Raw material mixing- Extruder-Mould-Calibrating-Haul Off-Cutting Machine-Stacker

WPC Board Introduction:

WPC Board also named WPC PVC foam board, It is one kind Wood Plastic Composite Board, Which could be used in Furniture, Decoration, construction of sign boards, display boards, switchboards, exhibition stands, garden fencing, and shuttering boards.

It is also used for bathroom cabinet and several industrial sections. People also prefer such board for making durable and long lasting furniture for interior as well as for outdoor requirements.

Technical Specification

Weight 8000 kg
Dimensions 28000 × 2200 × 1800 mm

Product Specifications

Machine Model

WPC foam board extrusion line Product size Capacity
SJMS80/156 Width: 1220mm,  Thickness:3-18mm 250-350kg/h
SJMS80/173 Width: 1220mm Thickness: 5-30mm 300-400kg/h
SJMS80/173 Width: 1220mm Thickness: 5-35mm 300-400kg/h

WPC Extrusion Machine

WPC Extrusion Machine is Wood Plastic Composite Production line, It use new or recycled PP PE PVC to produce Profile, Board etc products.

Plastic Formulation Final Product
PVC 10%-30% wood powder or natural fiber, 70%-90% PVC Door Frame, Door Board, Furniture Board, Decoration Board, Wall Panel etc
PP/PE 50%-70% Wood powder or natural fiber, 30%-50% PP/PE Railing, Fencing, Decking, Flooring, Pillar, etc
